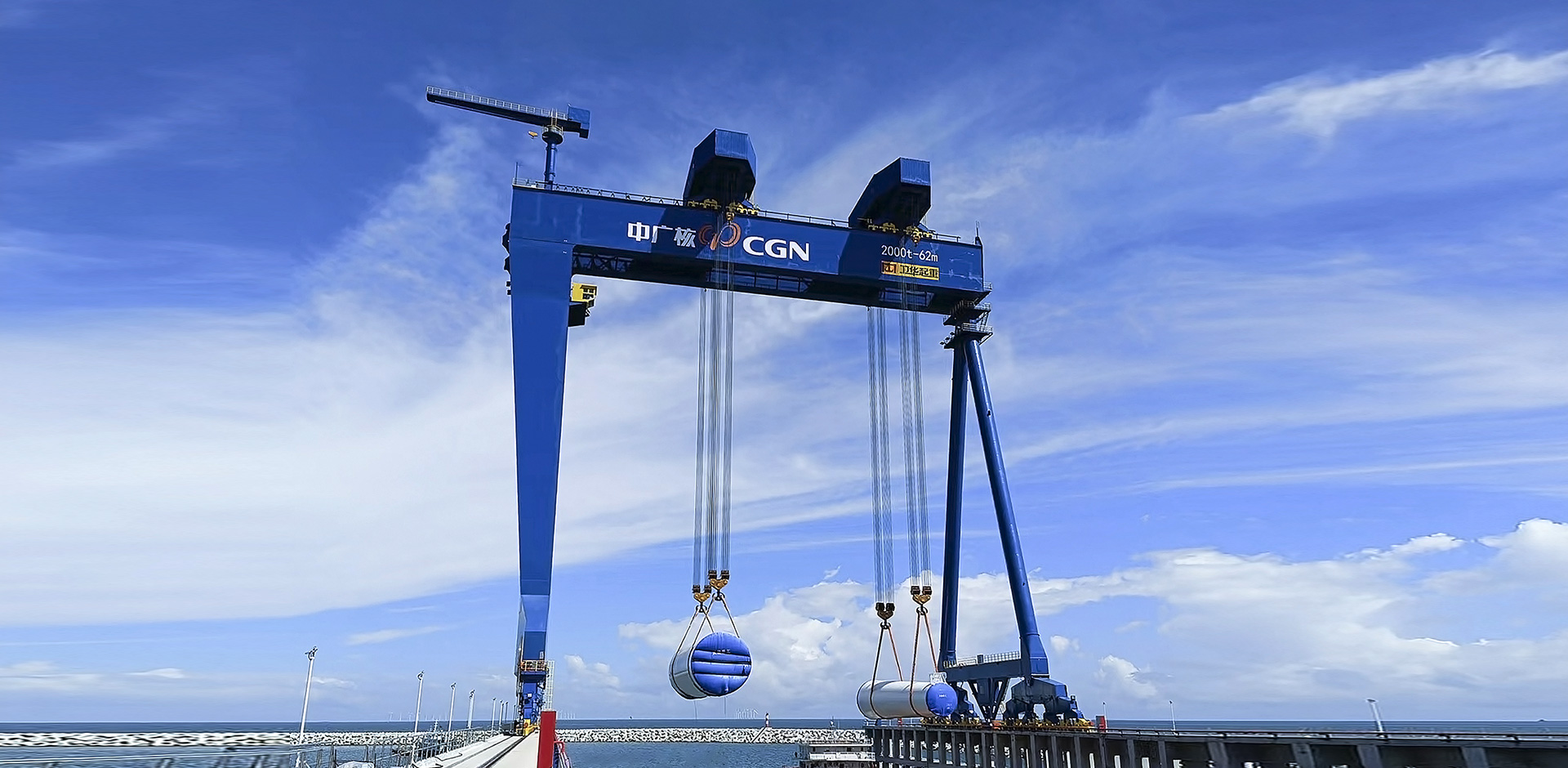

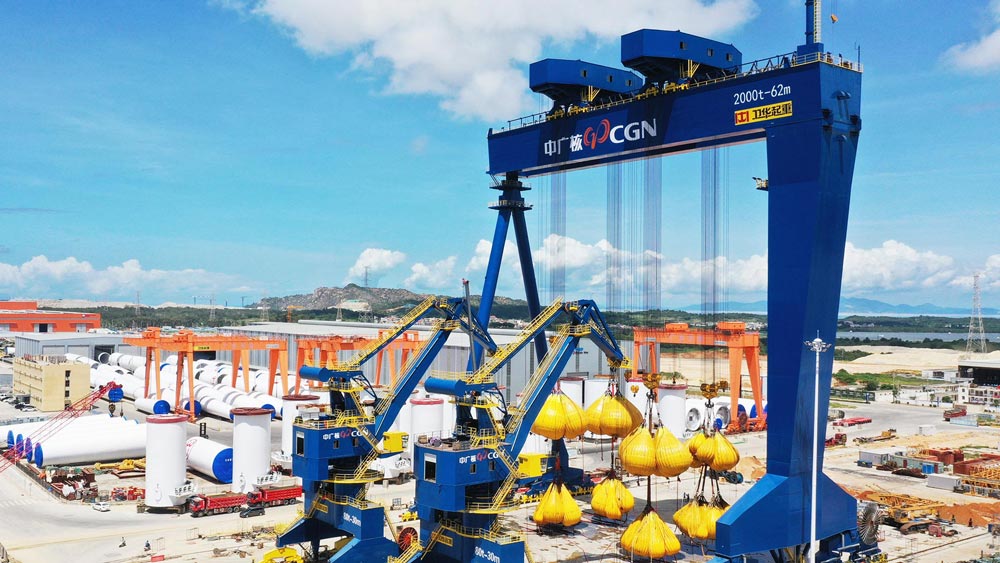

Goliath Gantry Cranes are special hoisting equipment for hoisting and turning over hull sections on the dock, slipway or platform of the shipyard.

Due to the large span of the Goliath Gantry Cranes, the gantry usually adopts the type of rigid legs on one side and flexible legs on the other side, that is, the rigid legs on one side are fixed to the main beam, and the flexible legs on the other side are connected to the main beam through flexible hinges.

There are two types of main beams: single main beam and double main beam. According to the requirements of shipbuilding technology, the shipbuilding gantry crane should have multiple functions such as single lifting, double hook lifting, triple hook lifting, hull section turning in the air and micro rotation in the air, especially to meet the requirements of the hull section turning and closing operation. The shipbuilding door machine generally has two upper and lower trolleys. The upper and lower trolleys run on their respective tracks, and the lower trolley can travel under the upper trolley.

Features

1. 1.Large lifting weight, large span and high lifting height.
2. 2.It has multiple functions such as single lifting, double hook lifting, triple hook lifting, hull section turning in the air and micro rotation in the air;
3. 3.Set up and down two trolleys. The upper and lower trolleys run on their respective tracks, and the lower trolley can travel under the upper trolley.
4. 4.There is a traverse mechanism, which can be traversed separately to complete the micro-movement and micro-rotation of the workpiece, and can accurately align when closing.
5. 5.Equipped with two sets of rectification devices, the upper rectification device and the lower rectification device, to prevent the cart from running skewed. Ensure the safe operation of the crane.

CASES

• Gantry cranes at the Zvezda shipyard in Russia
• 17 sets of overhead cranes at the Amur shipyard in Russia
• 200T JUTAL Shipbuilding Gantry Crane

• CNOOC 800t Shipbuilding Gantry Crane
• Vietnam Shipbuilding Industry Corporation (Vinashin) to supply 15 sets of EOT cranes
• 500-ton overhead crane at Muhibbah Marine Engineering SDN.BHD shipyard in Malaysia
