Quenching cranes are usually also called slab handling cranes. They are mainly used for large hot metal in the quenching process, and are mainly used for hoisting high temperature profiles or bars for quenching.

When is the quenching crane used? Usually used in the quenching process in the smelting and metallurgical industry. For example, after the high-temperature bar is released, a flatbed truck is transported to the designated location. At this time, the quenching crane starts to operate and transports the high-temperature bar to the quenching pool for heat treatment. Finally, the bar is lifted to the designated location and waits for the instruction to proceed. next work cycle. Usually, the temperature of heating the bar is 1050℃. Because the working environment of the crane is very hot, the whole process requires unmanned operation and automatic operation. The high temperature environment has very high requirements on the hook of the crane, it must be resistant to high temperature, so we use the patented wire rope adjustment device and the special spreader for the C-type hook.

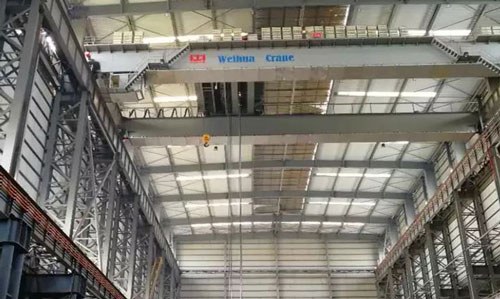

Weihua intelligent quenching crane is an overhead crane that can be fully automated and controlled, and is an overhead crane used for slab or steel billet handling.

You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for Quenching Crane.

Our quenching cranes have intelligent features:

1. Patented wire rope adjustment device

The hoisting mechanism adopts a single-drive double-drum structure to ensure the synchronous lifting of the double hoisting points, and the wire rope adjustment device can be used to quickly level the spreader.

2. Independent patent anti-sway technology

The whole machine is equipped with rigid guide post and horizontal guide wheel device, which has the function of anti-sway and precise positioning.

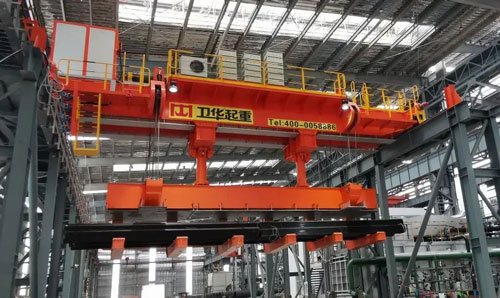

3. Special spreader for C-type hook

Special spreader with hardened C-hook. Multiple C-shaped hooks equipped with removable. The connection location is set on the side. It is easy to maintain and can effectively improve the lifting space.

4. Intelligent control system

The control system is equipped with wireless remote control and ground pendant control. Use well-known brand wireless communication equipment to realize the information exchange between the remote control station and the driving. It has remote control and fully automatic control mode.

5. High-precision positioning:

The positioning system adopts absolute encoder and position detection switch to automatically correct to avoid accumulated errors and achieve high-precision positioning.

6. Safe and efficient:

The control system receives the instructions sent by the upper system to realize fully automatic operation. It has the functions of stable handling, light lifting, rapid quenching, and anti-collision.
