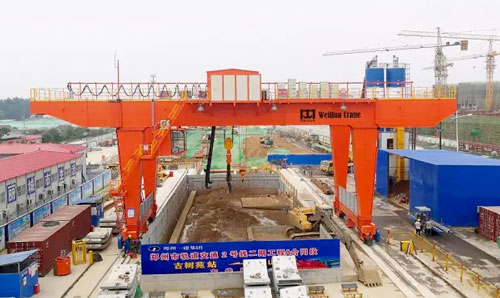

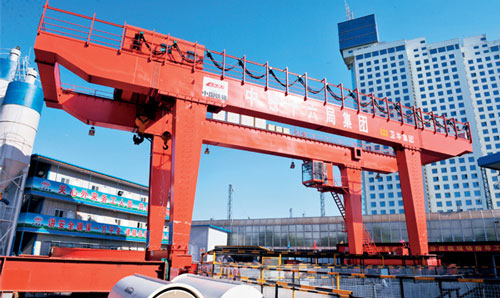

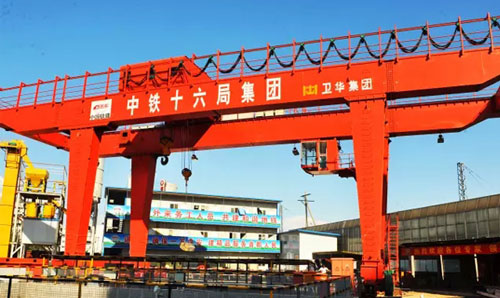

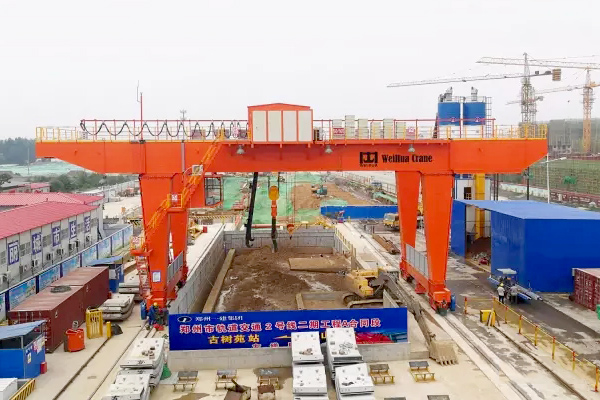

The subway gantry crane is a crane specially designed and manufactured for subway and railway construction. It is usually a double girder gantry crane.

This special gantry crane is mainly used for subway and tunnel construction. Its main function is to carry out the handling of slag and on-site construction materials, and it transfers the slag excavated by the shield excavator to the ground.

With the span-changed function of Min. step-length 100mm, this subway construction gantry crane is suitable for various working conditions. Its cantilever can be disassembled or retained. The cantilever interface is very flexible under different working conditions.

It has a lightning protection system and a wind speed detection and early warning system, which greatly guarantees the safety of the gantry crane. This special gantry crane is also equipped with a special spreader that enables the interchange of slag buckets and hooks. It can be flipped anywhere in the air using a flip structure.

The residue system is hydraulically controlled, which makes the turning process more stable, and its trolley is also rotatable, allowing the front and side to transport the residue.

With the rapid economic development and serious traffic problems in many cities, subway construction is also in rapid development.

Our gantry crane for subway construction is a special gantry crane for tunnel and subway construction. Weihua gantry cranes have rich experience and many project cases in subway construction and tunnel construction. You can contact our experts, our experts will provide you with professional crane solutions.

In China, our gantry cranes have been the No. 1 sales volume for 14 consecutive years. As a professional gantry crane manufacturer, you can completely trust our strength, we can provide you with different types of gantry cranes.

You can contact our experts and we will tailor a gantry crane for your facility based on your needs and your application.

Standard Specifications of Gantry Cranes for Metro Construction

Lifting: 16t-45/16t

Span: 18, 22, 26, 30 meters

Job Responsibilities: A6

Subway gantry crane for slag handling is used for subway tunnel construction. This crane is mainly responsible for the construction of the subway tunnel, lifting the dregs excavated by shield excavator to the ground. Features of subway slag gantry crane:

◆ variable span, improve crane utilization;

◆ cantilever detachable, more practical;

◆ running fast, high work duty, high efficiency;

◆ high lifting height;

◆ with special tilting spreader with automatically tipping.

1. The gantry crane for subway construction is used for dealing the dregs and site material handling during subway construction.

2. With the span-changed function of Min. step-length 100mm, this subway construction gantry crane is suitable for various working conditions.

3. The cantilever is detachable, also can preserve the cantilever interface which will be flexible for different working conditions.

4. There is lightning protection system, wind speed detection warning system.

5. The gantry crane for subway construction is equipped special spreader and realize the interchange of dregs bucket and the hook.

6. With the overturn hook, it realizes overturning the dregs at any position in the air. Overturning dregs system is controlled by the hydraulic which makes the overturning process more stable.

7. The trolley is rotatable, and can realize the front, side transporting dregs.
