Modular and Compact Design

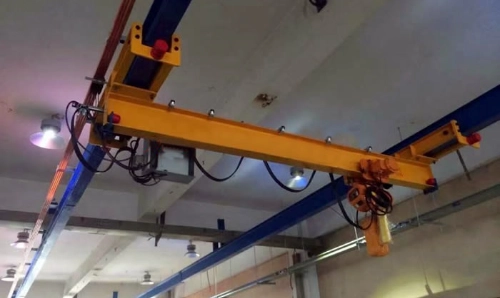

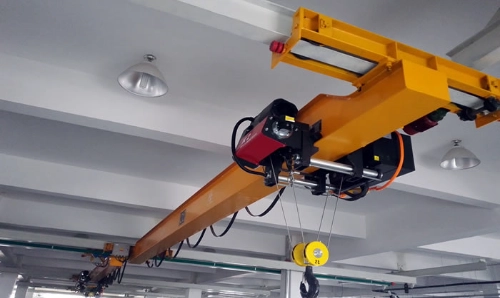

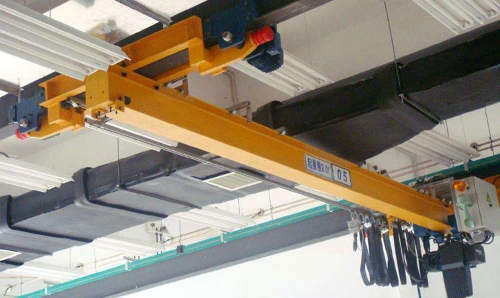

• Weihua NLX suspension overhead travelling cranes provide the best possible results are achieved when in tight spaces and difficult conditions of complex buildings. The cranes are simply attached to the existing roof structure – columns to support the crane runway are not needed. This design saves time and costs, and the underslung overhead travelling cranes make optimal use of the available building width by featuring very small side approach dimensions and bespoke main girder cantilevers. It is also possible to optimise the highest hook position by stooling up the main girder between end carriages.



• The crane is designed with torsion resistant welded box girders. Also, the torsion resistant welded box girder can be replaced by I beam or H beam with our NL series electric chain hoist for light duty and capacity working requirements.



• The modular design uses a combination of high-quality parts and serial modules to form a rich product specification, modularization, standardization, and mass production mode to ensure product quality, shorten manufacturing period, easy transportation and installation.



• By using compact hoist and high strength materials, the crane has much smaller sizes, wheel load and weight, which can decrease the height of building and reduce the plant construction cost.



• Compact structure, low clearance, small dimension and large work scope, improving production efficiency.



Advanced Manufacturing Technology



• Advanced steel plate pretreatment production line for shot blasting, painting and drying. Shot blasting grade reaches Sa2.5 and surface roughness (Rz) is 40～80μm. Primer spraying will be done within a specified time after the pretreatment to prevent rust, steel materials for main beam, girders will be transferred to fabrication workshop for cutting after pre-process.



• The crane main girder, end carriages and trolley frame adopts our robot automatic welding technology, automatic double-sided intermittent welding technology for the reinforced angle steel weld on the main beam cover web and gantry submerged arc welding for longitudinal weld on the outside of the main beam, all ensuring the highest welding quality.



• The industry leading technology and application of modular interchangeability of crane main girder and end beams.



• The industry leading crane bridge frame and trolley frame processing technology after welding, achieving the high efficiency and stable processing accuracy of the overall crane processing technology after welding.



• The industry leading automatic spraying production line includes three workshops of sandblasting, painting and drying. Safety, reliable and environmental.



High Safety, Reliability, Efficiency and Maintenance Free



• Germany ABM Hoist lifting motor double-winding squirrel-cage pole-changing dual speed hoisting motor with stable and reliable operation, and free of maintenance. SEW variable speed inverter controlled travelling motors with stable and reliable operation and low noise.



• Safety monitoring systems for hoisting and travelling mechanism, many functions can be achieved according to the demands of users.



• The crane provides with many protection including linkage, overload protection, zero protection and limit protection, ensuring the crane always under safety operation.



• The crane provides with advanced PLC automatic detection function, which can perform measurement, calculation and monitoring to the performance, safety and working condition in order to ensure more safe and reliable transportation of items.



• The Crane Standard working duty is FEM 2M/ISO M5, equipped with our ND or NR series electric rope hoist with 1,600 hours of service at full load.



• Standard dual speed for hoisting and variable frequency drive (VFD) control speed for cross and long travelling. Which improve load handling and reduce load sway motions.



• Electric Components. Electrical components uses ABB, Siemens and Schneider international brands.



Optional Functions



• Anti-collision Protection



For several cranes travelling on the same rail, the common resolutions refer to install contact anti-collision device to avoid sharp impact due to incorrect operation. Non-contact infrared sensor anti-collision device will be additionally installed to take double safety protection measures with sound and light alarm if running busily or under an important working environment.



• Tandem Operation



Loads can be safely transported by two ND(S) rope hoists through one single control unit, two cranes systems with up to four rope hoists can be synchronized as well.



• Smart Electronic Anti-sway Control Technology



The electronic anti-sway control technology can reduce the mechanical and electrical damage caused by load shaking through controlling the sloshing of the load. The crane becomes easy to control, and the loads can be easily and accurately reached the designated position.



The crane operator will concentrate on the load itself, rather than the movement of the crane, the entire transportation process will be safer, accurate and the work efficiency will be greatly improved.

You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for NLX Suspension Overhead Crane with Electric Hoist.
