Charging Crane
Description
Open+
Close-

As one of the series products of foundry cranes, charging cranes are very important in steel production. As crane equipment used in foundries and steel mills, in most cases, charging cranes are mainly used to transport molten metal. Charging cranes are sometimes called teeming cranes. Both the charging crane and the ladle crane are foundry cranes. The main difference between it and the ladle crane is that its main hoisting mechanism does not work completely independently, and both of its hooks need to have high loads. Ability.

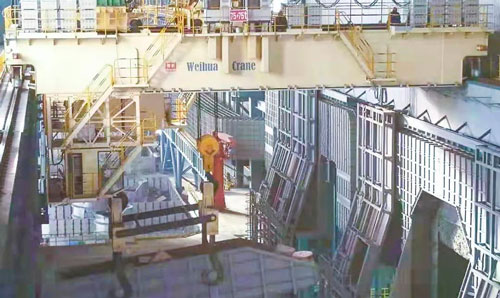

It usually feeds the electric arc furnace in the charging workshop and can transport the molten iron to the continuous caster or the turret station of the ladle furnace, which is a heavy-duty continuous operation process.

Loading cranes have very high requirements for safe and redundant design and precise control of the load. The charging crane needs to transport metal materials to the furnace, but since the heat emitted by the furnace usually exceeds 70 degrees, it must not only have a fireproof and high temperature resistant design, but also have a high-load lifting capacity. The fully automated technology of Weihua loading cranes can satisfy the precise placement of loading cranes and the safe and stable transport of loads.

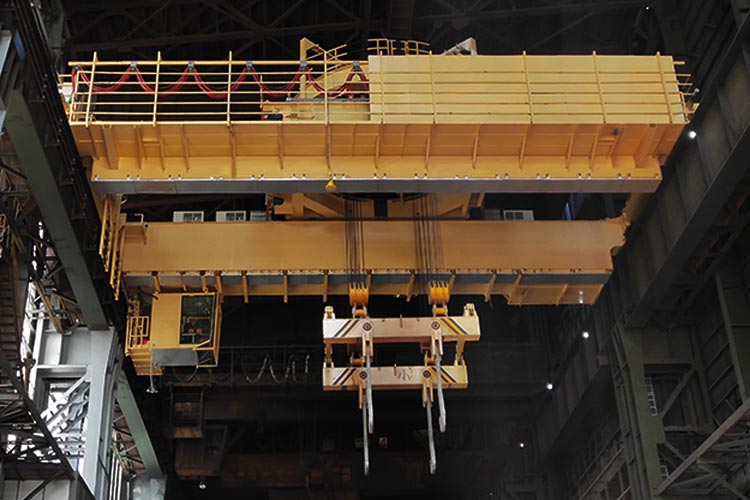

As a special bridge crane, the main structure of the loading crane includes the box bridge, the lifting trolley, the driving system and the electrical device, and each of its components needs to be very good in terms of material and performance.

The usual structure of our loading cranes is a double girder double trolley and four girders support a double trolley. Of course, you can also customize it according to your own needs. The lifting capacity of our loading crane can be as high as 800 tons.

With 34 years of experience in the crane industry, we can customize crane solutions for you according to your needs.

You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for Charging Crane.

Features
Open+
Close-

The hoisting mechanism of the charging crane adopts a redundant system design to ensure the safety and reliability of hoisting liquid metal.

Install a monitoring system to monitor the working status of the crane in real time

Wireless transmission and electronic scale, real-time transmission of liquid metal weight.

Each crane is designed with an electrical room, and electric fans are installed in the electrical room to ensure the safe and reliable operation of electrical equipment.

The main and auxiliary trolleys realize unmanned automatic bag hanging, saving costs.

The overall design is light and compact.

Low height, light weight, small hook limit and large working range.

High quality accessories, durable, safe and reliable.

Maintenance and repair costs are low.

The total power of the crane is small and the energy consumption is low.

Frequency conversion speed regulation, stable up and down, small impact.

Lifting Capacity T 20+20ton To 110+110ton, 180/50ton, 240/80ton, 260/80ton And 300/80ton
Span M 30
Lifting Height M 30
Work Classifications A7 \ A8
