Ladle Handling Crane
Description
Open+
Close-

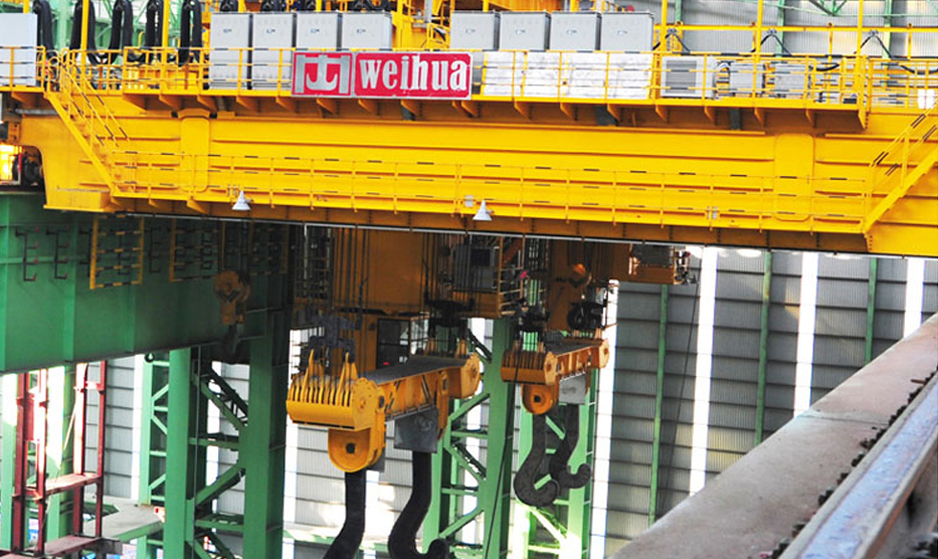

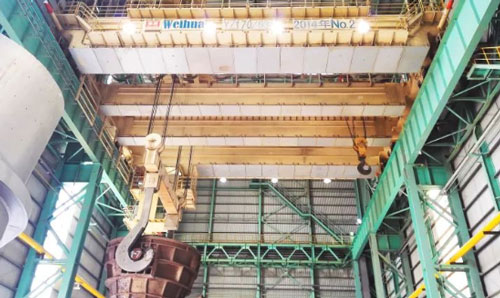

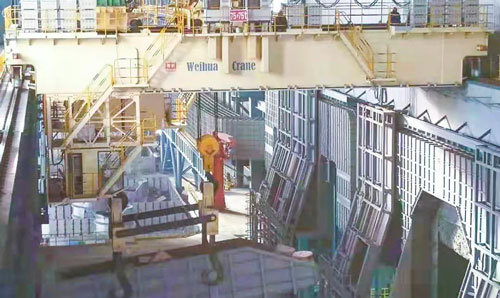

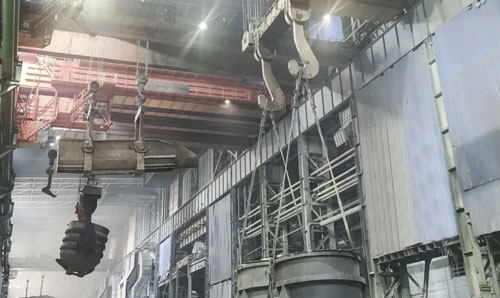

Ladle  cranes (ladle handling cranes or casting ladle crane) are used to transport molten steel ladles in foundries and steel mills.Foundry cranes are superior performance cranes operating in both high temperature and high amount of dust environments.

Safety and reliability always come first with  WEIHUA ladle handling cranes because it is used to transport molten steel.





The main structural forms of Weihua Ladle Cranes:

Weihua steel ladle crane generally have: Double girder two rails Ladle Cranes, Four girder four rails Ladle Cranes, Four girder six rails Ladle Cranes etc...
ouble girder two rails and Four girder four rails Ladle Cranes are normally used for medium and large tonnage casting crane, Four girder six rails Ladle Cranes are generally used for extra large tonnage casting crane.

You can choose according to your needs, or you can consult our experts, we can provide you with the best solution for Ladle Handling Crane.

Features
Open+
Close-

Weihua Ladle Crane is designed to operate efficiently, uninterruptedly and safely in continuous use. Due to the high level of risk, special safety features have been designed for ladle cranes:

1. It adopts Siemens PLC and Siemens inverter for control and drive. At the same time, Profinet is used for communication between PLC and inverter. It is equipped with communication detection function, which can detect the working status of each station in real time.

2. A monitoring system is installed to monitor the working status of the crane in real time.

3. The hoisting mechanism of the ladle crane adopts redundant system design to ensure the safety and reliability of lifting liquid metal.

4. It is with wireless transmission and electronic scales, real-time transmission of the weight of liquid metal.

5. Each crane is designed with an electric room, and an electric fan or AC unit is installed in the electric room to ensure the safe and reliable operation of the electrical equipment.

6. ladle crane hoisting mechanism adopts the planetary reducer structure. If one motor fails, it can still complete the lifting work in a short time.

7. Frequency control, smooth lifting and less impact.



What benefits can you get when you choose Weihua Ladle Crane?

Bringing convenience to our customers, promoting their working efficiency and decreasing your costs is our long commitment to the crane industry.

1. Mother-child trolley to realize the unmanned automatic hanging ladle and save the cost.

2. The overall design is with lightweight and compact structure.

3. Low height, light self-weight, small hook limit, large working range.

4. High quality parts, durable, safe and reliable.

5. Less maintenance and repair costs.

6. Small total crane power and low energy consumption.

Techinical Specifications Part 1
Lifting Capacity t 100/32 Double Girder 100/32 Four Girders 125/32 Double Girder 125/32 Four Girders
Span m 19.5~28.5 19~28 19.5~28.5 19~28
Lifting Height m 20/22 20/22 20/22 20/22
Work Duty A7
Main Lifting Speed m/min 7.5 7.5 7.5 7.5
Vice Lifting Speed m/min 10.5 12 10.5 12
Crane Traveling Speed m/min 38 32.5/37.4 38 38/37.4
Trolley Traveling Speed m/min 68 78 79.7 79.7
Power KW 393 426.5 479 484.5
Track QU120
Lifting Capacity t 200/50 Four Girders 225/65 Four Girders 240/75 Four Girders 280/75 Four Girders 320/80 Four Girders
Span m 28 27 24 21 24.5
Lifting Height m 26 28 31 24/26 28/32
Work Duty A7
Main Lifting Speed m/min 8 8 10 10 9
Vice Lifting Speed m/min 9.3 10 10.5 10.5 10
Crane Traveling Speed m/min 40 40/38 38/40 36/39 36/39
Trolley Traveling Speed m/min 86 87 87 76 63
Power KW -- -- -- --
Track QU120
